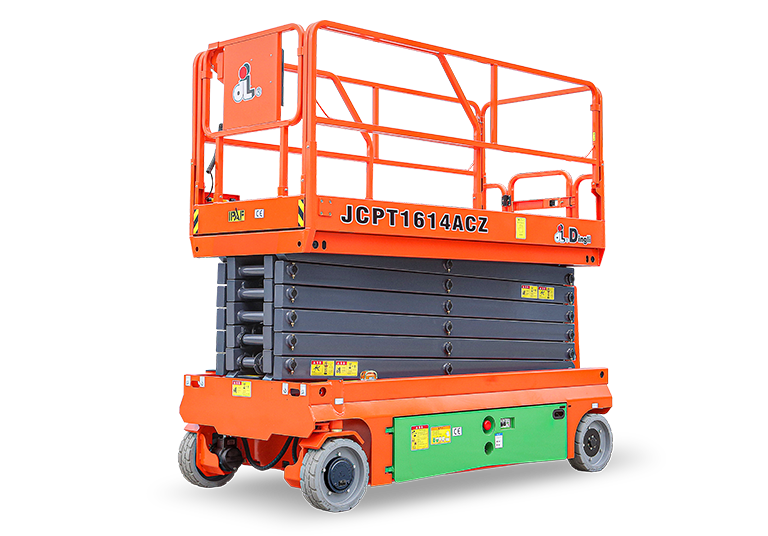

JCPT1614ACZ
콤팩트 시저

● Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer

● Automatic pothole protection system, more safe and reliable

● Unidirectional extension platform, can quickly reach the operation point

● Automatic display of fault code for easy maintenance

● Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer

● Automatic pothole protection system, more safe and reliable

● Unidirectional extension platform, can quickly reach the operation point

● Automatic display of fault code for easy maintenance



  • 제품 매개변수
  • 지원
  • 다운로드
  • 치수
    최대 고소작업 높이
    15.70m / 51ft 6in
    최대 플랫폼 높이
    13.70m / 44ft 11in
    전체 길이(사다리 포함)
    2.84m / 9ft 4in
    전체 길이(사다리 미포함)
    /
    전체 너비
    1.39m / 4ft 7in
    전체 높이(레일 업)
    2.62m / 8ft 7in
    전체 높이(레일 다운)
    2.09m / 6ft 10in
    플랫폼 크기(길이 × 너비)
    2.64m×1.12m / 8ft 8in×3ft 8in
    플랫폼 확장 크기
    0.90m / 2ft 11in
    지상 간극(견인/상승)
    0.10m/0.019m / 4in/1in
    휠베이스
    2.24m / 7ft 4in
    회전 반경(내부/외부)
    0m/2.70m / 0in/8ft 10in
    타이어
    φ381×127mm
  • 성능
    안전한 작업 부하
    350kg / 772lb
    확장 시 S.W.L
    136kg / 300lb
    최대 탑승자 (실내/실외)
    2/1
    등급성
    0.25
    이동 속도(견인)
    ≯5.0km/h / ≯3.10mph
    이동 속도(상승)
    ≯0.8km/h / ≯0.50mph
    최대 고소작업 경사(X/Y)
    1.5°/3°
    위/아래 속도
    72/67sec
  • 중량
    전체 중량(납산 배터리)
    3470kg / 7650lb
    전체 중량(리튬 배터리)
    /
  • 전원
    유압 탱크
    20L / 5.3gal
    유지 보수가 필요 없는 납 축전지
    24V/240Ah
    리튬 배터리
    24V/220Ah
    충전기
    24V/30A
    구동 모터
    2×15VAC/0.87kW
    승강 모터
    16VAC/3.5kW
